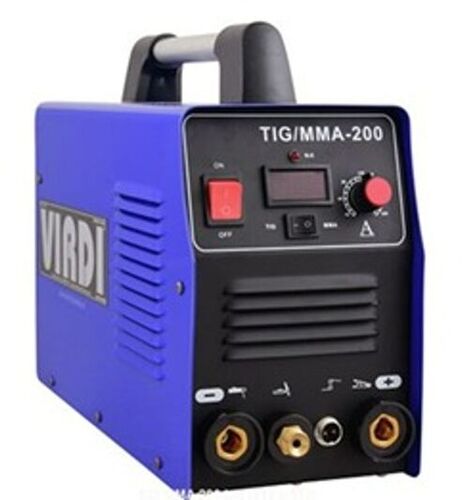

TIG Welding Machine

TIG Welding Machine
TIG Welding Machine
Product Code : TIG 08
Brand Name : VIRDI ELECTRIC WORKS PVT. LTD
Trade Information
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 150-200 units per month.
  • Delivery Time
  • Week
  • Packaging Details
  • Customized.
  • Certifications
  • ISO, NSIC,MSME
Product Description

TIG Welding

We offer a wide range of TIG Welding of VIRDI series. This welding is used for removal of the spatter generation and stable arc with the regular droplet transfer. These are available in forced air-cooled, silicon type and current systems of 3 phases, 50 Hz Ac mains power with a voltage ranging from 380 to 440. These TIG welding is heavy duty and movable due to the castor wheels provided with them. We manufacture these welding using quality materials and are accessed at reasonable price. TIG welding is widely used in many fabrication industries for various welding and rectifying applications.

AC / DC TIG / MMA Welder 315 are accessible with us under brand VIRDI DC TIG Welding Systems' and are fabricated to provide excellence and consistence presentation support. Functioning on non-source power factor reimbursement technology, these come with benefits of high PF (power factor) as well as switch regularity based function control.

Features:

  • Compressed low weight finish
  • Based on soft switch technology that conveys high operation effectiveness
  • Operations linking HF arc-starting that gives steady arc as well as less sprinkling with outstanding seam
  • Sustained by mechanical arc force as well as hot start for performing perfect soldering operations. Provides for excellent looking weld
  • Accuracy process handling that attains deep melting as well as low electrode utilization
  • Easy and suitable to handle knob-control presets of all operational parameters & soldering state
  • Features adaptable provisions for argon stopping time of lag and present downward time/present stopping time of arc which improves TIG welding presentation
  • Distributes outstanding weld seam quality
  • Comes with self-diagnostic purpose with inaccuracy code display prerequisite
  • Facilitates in achieving synchronous mutual arc function
  • Appropriate for optional base metals like Al Mg Alloys, Stainless Steel Grades, Mild steel, Aluminum

Applications:

  • Product Usage:
  • Bicycle
  • Fitness gears
  • Stainless steel furniture

Industry Usage:

  • Protection and restore Industry
  • Plant manufacture Companies
  • Container producers
  • Pipeline manufacturing
  • Non-source power factor reimbursement technology, high PF (power factor). High switch frequency, little size, light weight. Soft switch technology, high effectiveness.
  • HF arc-starting, constant arc, less sprinkle and outstanding seam.
  • Automatic arc energy and hot initiate to perform ideal soldering.

Features for AC/DC TIG welding :

  • Clean weld, deep melting, low electrode consumption.
  • Knob-control predetermined of all constraints and soldering state, easy and suitable. Adaptable argon stopping time of lag, present descending time and the present of stopping arc perk up the TIG soldering performance.
  • Outstanding weld seam quality can be attained due to its effect on all significant areas of the weld. Self-analytical function with inaccuracy code display.
  • A type benefits the synchronous shared arc function.
  • Suggested base metals: Soft steel, Stainless Steel Grades, Aluminum, Al Mg Alloys Etc..

Products Technical Specification:

Model Virdi Ad 315
Input Voltage 3 Phase 415v ± 10%
Frequency 50/60hz
Rate Input Current 13.6
Range Of Output Current 5 - 315
No-Load Voltage 56 V
Rate Output Voltage 22.6
Pre-Flow Time 0-2s
Clean Width 20-80%
Slope-Down Time 0-5s
Pulse Width 10-90(%)
Range Of Pulse Current 20 - 315
Range Of Pulse Frequency 1-70 (Hz)
Post-Gas Time 2-10s
Arc-Leading Hf Vibration Start
Efficiency 85 (%)
Duty Cycle 60 (%)
Power Factor (COSA) 0.93
Insulation Class H
Protection Class Ip21, Ip23
Weight (Approx.) 26 Kg.
Measurement (Approx.) 560 X361 X 360 Mm
